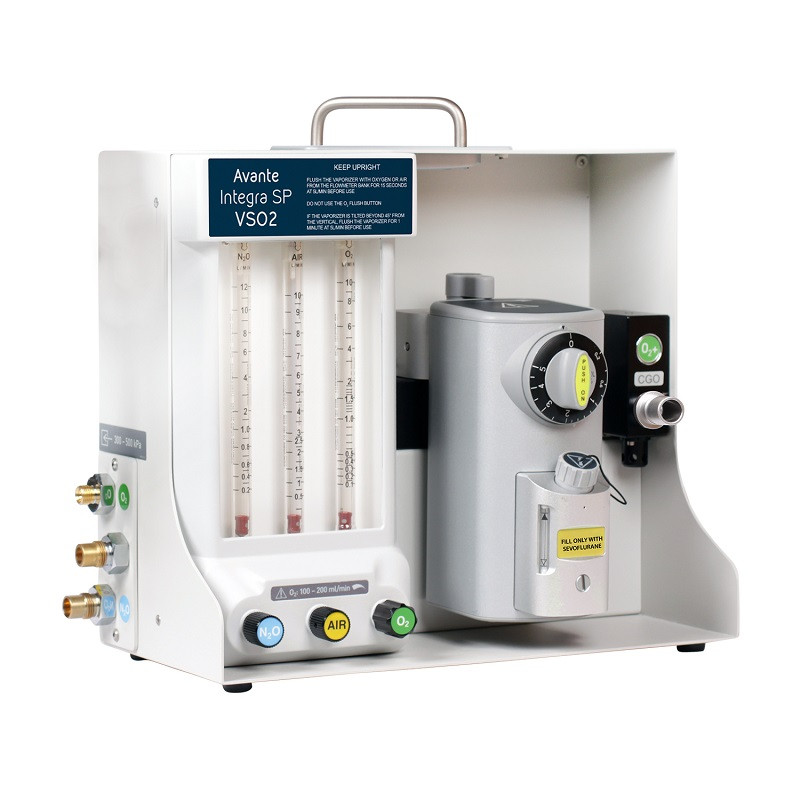

Integra SP VSO2 Portable Anesthesia Machine

• Fully-functional, compact and portable anesthesia system in a lightweight package
• Compact enough for the smallest surgery or imaging suite
• Fully portable
• Easily transport by using the retractable handle, located conveniently on top of the unit
• Side-located gas ports allow clinicians to safely and efficiently set up the machine

Features:

• Small and compact unit ideal for office-based anesthesia
• Lightweight machine weighs only 26 pounds!
• Three gas machine (O2, N2O and Air)
• Mechanical anti-hypoxic device and air/N2O interlock
• Retractable top handle for easy transport
• Conveniently located side gas ports
• Many ventilator options available.
• Selectatec-compatible vaporizer mounting system
• Optional carrying case with retractable handle and casters
• Optional mobile trolley with shelf
• Holds 1 vaporizer
• Specifically designed to accommodate low flow
• Auxiliary O2 flowmeter port
• Recessed flush valve
• Also available with MRI-compatible Penlon Nuffield Ventilator

Specifications:

• Dimensions:
• Height: 13.8 inches (35 cm)
• Width: 19.7 inches (50 cm)
• Depth: 7.9 inches (20 cm)
• Weight (without vaporizer): 26 lbs (12 kg)
• Flowmeters:
• Flow Range: Oxygen / Air: 0 – 10 L/min
• Flowmeter Accuracy:  ± 2.5% full scale reading
• Oxygen Failure Warning Devices:
• Gas system whistle
• Visual indicator, direct pressure operated
• Oxygen Flush:
• Button on front edge worksurface
• The system supplies 35 – 75 L/min when the button is fully depressed
• Mechanical AHD System
• Minimum oxygen concentration: 30% ± 3% ( total O2 + N2O flow)
• Basal flow – oxygen: 100 – 200 mL/min
• Environmental
• Operating Temperature: + 10 to 38℃ (50 to 100°F)
• Operating Atmospheric Pressure Range: 70 to 106 kPa
• Operating Altitude: 2438 m (8000 ft) maximum
• Operating Humidity: 10 – 85% R.H. non-condensing
• Transport / Storage:
• -5 to 40℃ (23 to 104°F)
• Cleaning:
• Wipe external surfaces with dry or damp cloth
• Use mild soap, or disinfectant solution if necessary
